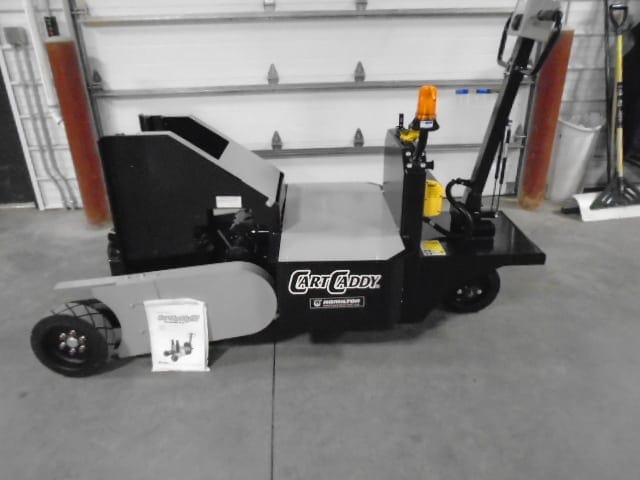

The heaviest CartCaddy. A chain driven electric tug that moves equipment up to 50,000 lb and lifts up to 6,000 lb on its hydraulic actuator to put weight over the drive tires for traction.
The CartCaddyHD Chain Drive comes standard with a 36v system (3 - 12v batteries) designed to give the operator 16-hours of use before recharging. There's usually plenty of battery life to last two shifts.

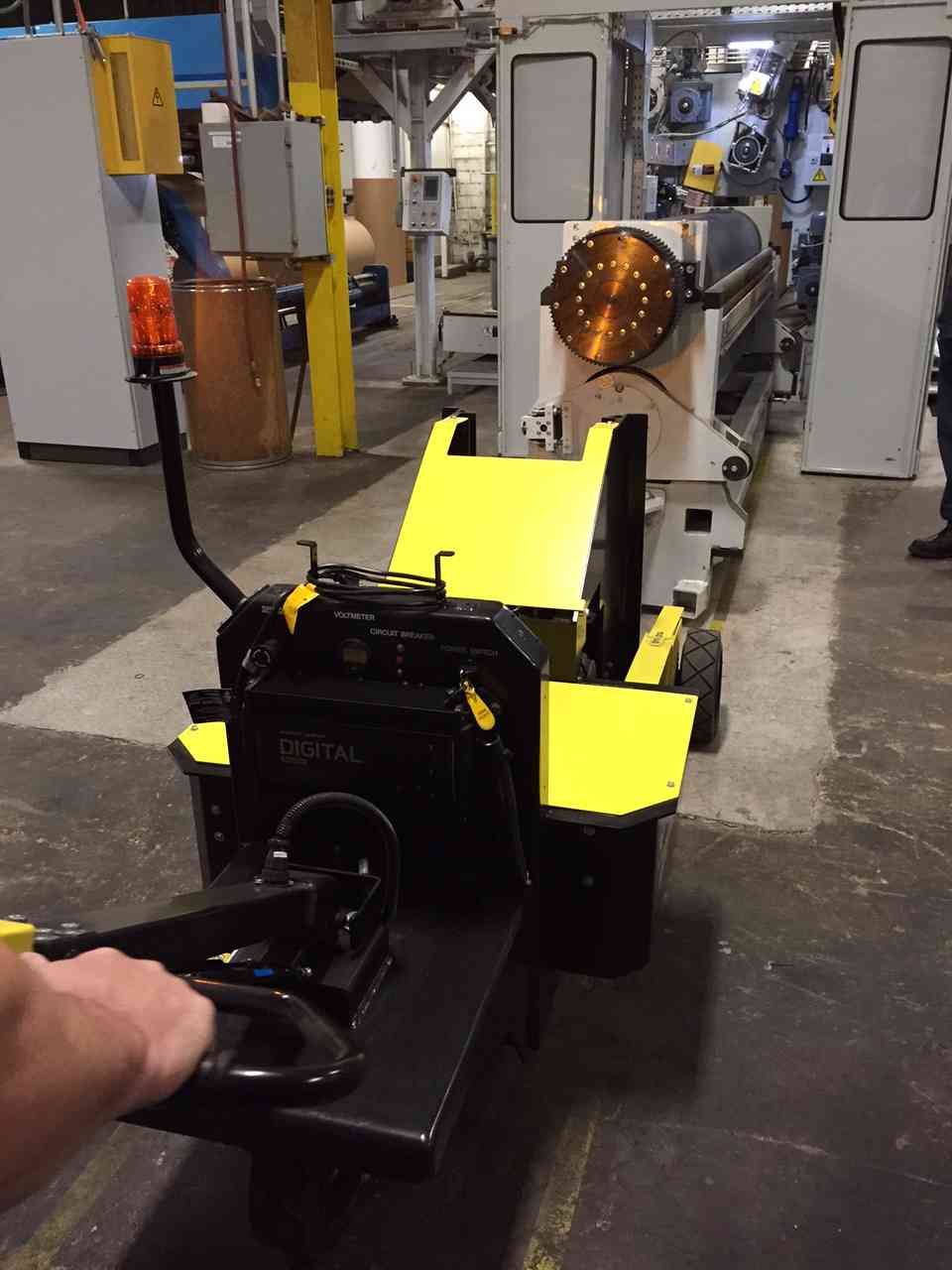

The mover has a variable speed twist grip for forward and reverse cart directions from 0 to 3 mph. The ergonomically correct variable speed feature prevents carpal tunnel and allows the operator to maintain smooth control while intricately maneuvering the cart. The CartCaddyHD Chain Drive's ability to go 2 mph allows the machine to keep up with the operator without frustration from waiting for a slowly operating machine when moving the unit from point A to B throughout your facility
The safety stop switch positioned at the back of the handlebar box immediately stops the mover when pressed to prevent any possible injury from operating the device and pulling a cart. This feature is a must when buying any piece of equipment.
Every DJ Products unit is built to order for the load it has to move, so the right drive package, attachment and battery depend on your application. Tell us the weight, the surface and the incline and we will quote the correct build.
| Load Capacity | 50,000 lb |
| Lift Kit | 6,000 lb hydraulic actuator |
| Drive | 2,000 lb chain drive transaxle |
| Battery | 36V three 85 Ah batteries |
| Speed | 0 to 3 mph forward and reverse |
| Tires | Solid fork truck drive tires |
Rated capacities are estimates. Real performance changes with the surface, the load, the wheels on the load and the incline, so a DJ Products sales engineer confirms the unit and the power package for your site before it is built.
The CartCaddyHD ChainDrive electric tug is the heavy-duty upgrade to the CartCaddyHD - 5WP. The 6,000 lb. hydraulic lift system transfers weight from the load to its drive wheels where the electric tugger/cart gets its traction.

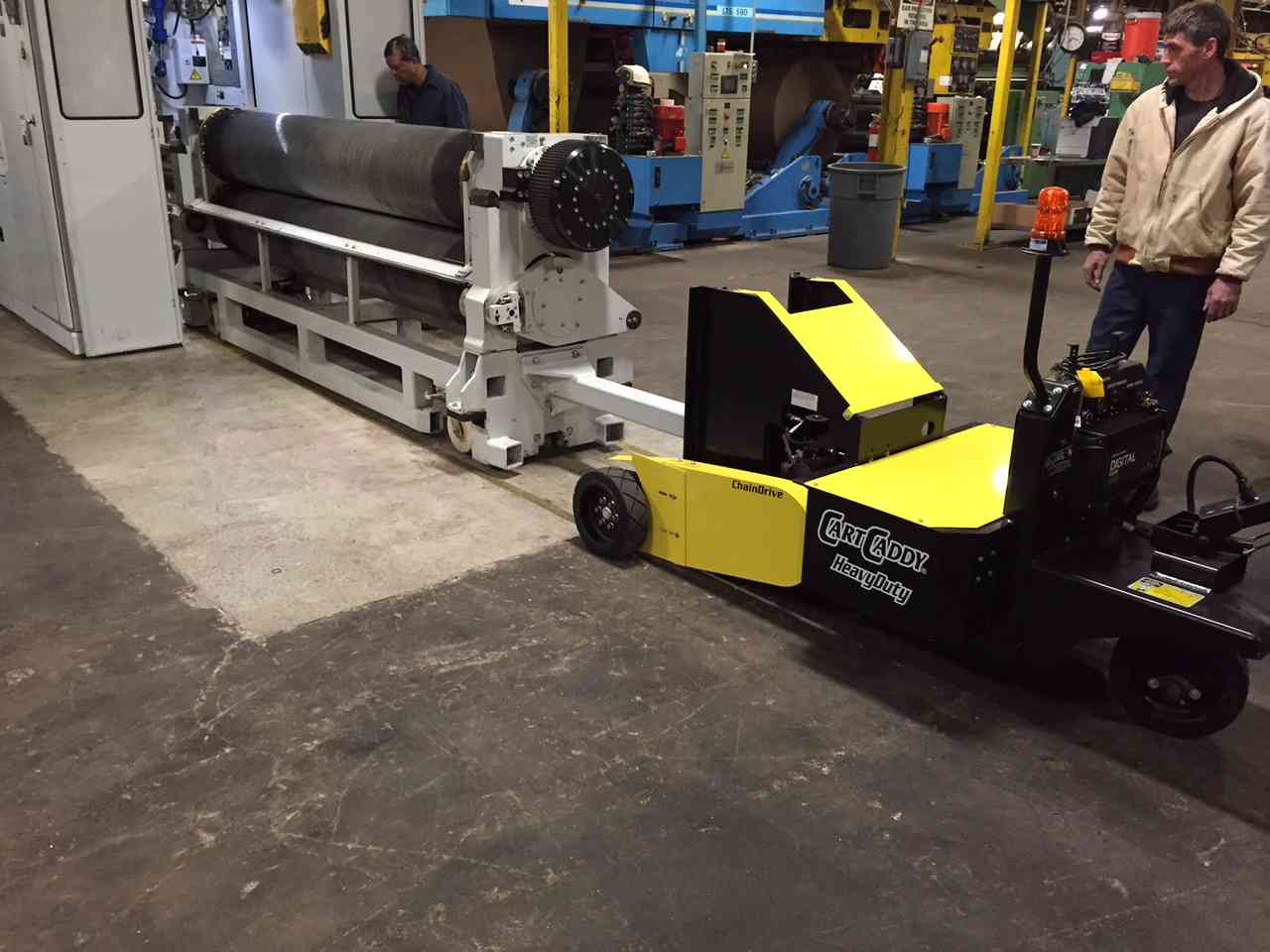

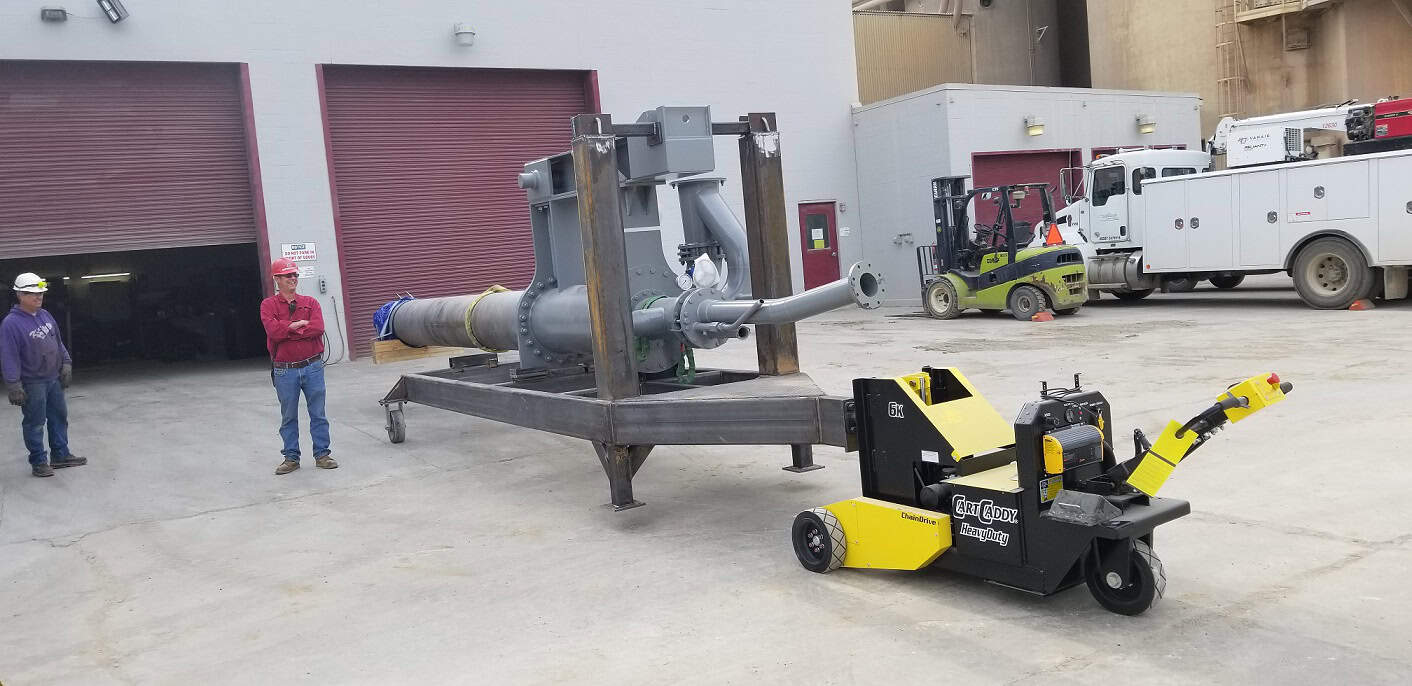

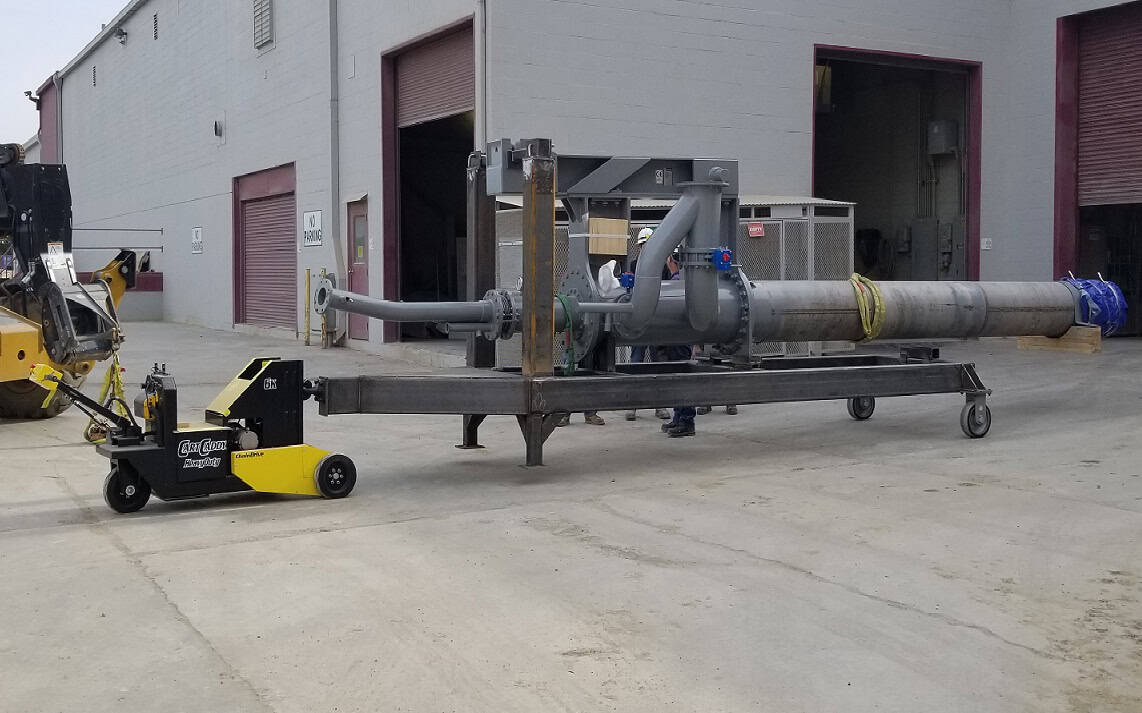

One of the most common applications of the CartCaddyHD ChainDrive cart mover is the cart with two straight casters and two front swivel casters. When attached to the swivel caster, the CartCaddyHD ChainDrive electric tugger provides the pushing and pulling power that is necessary for easy turning and smooth maneuvering with the cart mover.
The CartCaddyHD ChainDrive's powerful 3hp motor can provide up to 2,000 lbs. of horizontal push and pull force, eliminating the need for a forklift in heavy cart and equipment pulling applications. The CartCaddy gets its traction by transferring weight from the cart to its drive wheels with a 6,000 lb. hydraulic lift kit. It works well on carts with casters that need turning or carts on a rail that go straight forward or backwards. If the load or cart needs turning and maneuvering, the customer generally needs to install a heavy, fixed steel tongue that extends out and up at least 18" from the end of the load. The end of this tongue will include a ball coupler or pintle "eye". This tongue allows the mover's lift to push up, transferring up to 6,000 lbs. to the drive tires for the added traction. The out and upward extension lets the wheels of the CartCaddy turn under the tongue, giving the unit the ability to make a 90 degree turn to the cart. The CartCaddyHD ChainDrive can push or pull loads up to 50,000 lbs.
These options are built onto the CartCaddyHD ChainDrive at the factory. Pick the ones you want above and they are included in your quote.
Need something that is not on this list. DJ Products builds custom attachments, beds and shelving in house, so send us a photo of what you move and we will price it.
The CartCaddyHD ChainDrive is built to order, so it is not a stock item. DJ Products asks you to allow 3 to 6 weeks for production, then transit time on top of that depending on how far you are from their Minnesota plant.
Custom attachments, custom decks and special paint can add to that window. Your written quote carries the build time we can commit to for your unit.
Units ship by freight carrier to the 48 contiguous states. Alaska and Hawaii cost extra. Machines are crated and most sites need a dock or a forklift to receive them, so tell us if you have neither and we will price the delivery accordingly.
DJ Products gives a limited warranty covering defects in material and workmanship from the date of delivery. They repair or replace anything that proves defective inside the warranty period.
The warranty does not cover carrier damage, accident, misuse, normal wear and tear, or work done by anyone other than DJ Products.
DJ Products does not publish a warranty length for the CartCaddyHD ChainDrive. Ask us when you request your quote and we will confirm the term in writing before you order.
Built to order machines are not returnable once production starts, which is why a sales engineer reviews your load and your site before anything is built.
If the unit arrives damaged, photograph it before you sign for it and call us the same day so the freight claim can be filed.
